A New Transducer Paradigm
MM-FORCE redefines low-frequency design with an advanced moving magnet topology replacing the conventional moving-coil architecture for greater efficiency and control. From installed audio to automotive and immersive systems, MM-FORCE combines acoustic impact, mechanical control and Powersoft’s system-level expertise.

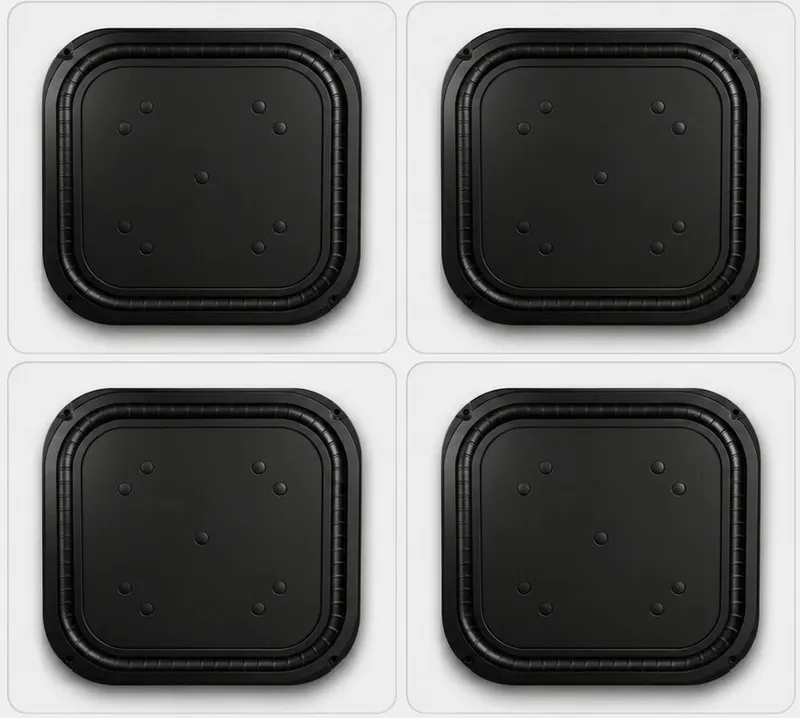

Building-Block Scalability
MM-FORCE is available in two models, designed to meet different integration and performance requirements: 8-inch and 10-inch. It gives manufacturers the freedom to scale low-frequency performance with a compact, modular building block. Its ultra-low-profile design makes it easy to integrate one or multiple units according to the desired acoustic output, cabinet format and installation constraints.
The square form factor helps optimize the use of available space, maximizing radiating surface while reducing wasted baffle area when multiple transducers are placed side by side. This modular approach enables flexible product architectures, from compact single-driver solutions to scalable multi-driver bass systems.
For more details, please refer to theProduct Overview & Technical Guide.
Engineered around uptime
Delivers strong low-frequency output from reduced enclosure volumes, enabling bass integration in space-constrained applications.

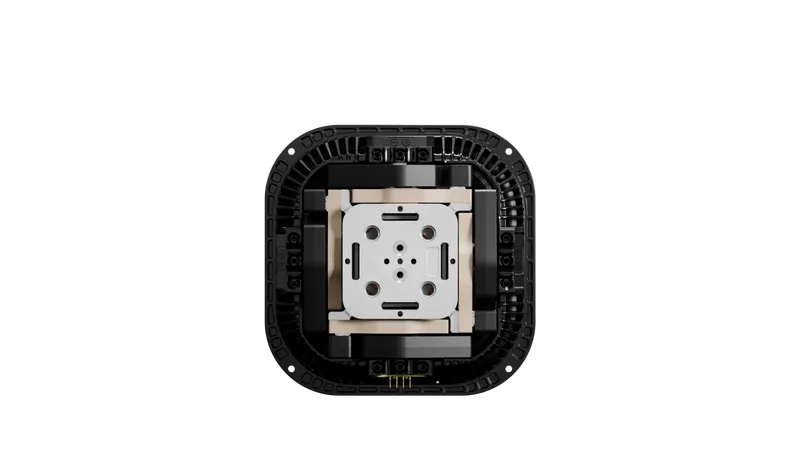

Moving magnet technology, stationary coil design, and high-efficiency amplification help reduce losses and improve energy transfer.
The inertially balanced architecture reduces vibration, making MM-FORCE suitable for walls, vehicles, furniture, and other sensitive installations.
The system is designed for precise diaphragm motion, supporting powerful bass with control, stability, and reduced mechanical stress.
Specifications
| Nominal impedance | 8 Ω series / 2 Ω parallel |
|---|---|
| Minimum impedance | 5.5 Ω series / 1.4 Ω parallel |
| Re | 3.2 Ω series / 0.8 Ω parallel |
| Frequency range | 20 Hz - 160 Hz |
| Motor strength (beta) | 500 N²/W |
| Xlin | ± 8 mm |
| Xmech | ± 12 mm |
| Continuous power handling | 300 VA |
| Active power handling (typ.) | 90 W |
| Depth | 70 mm |
| Flange and gasket | 11.7 mm |
| Piston material | Carbon Fiber Reinforced Polymer |
| Magnet material | NeFeB |
| Typical unbalanced | < 10 g |
| Peak force | ± 500 N |
MM-FORCE 8" and 10"
Parameters that differ between the two models. Everything the two share is listed in the Specifications section above. Source: MM-FORCE technical guide.
| MM-FORCE 8" IB 4+4 Ω | MM-FORCE 10" IB 4+4 Ω | |
|---|---|---|
| Nominal diameter | 8" | 10" |
| Fs | 26 Hz | 31 Hz |
| Qes / Qms / Qts | 0.14 / 3.2 / 0.13 | 0.17 / 4.0 / 0.16 |
| Vas | 8.9 L | 19.8 L |
| Sd | 270 cm² | 483 cm² |
| Overall dimensions | 208 × 208 mm, R 57.2 mm | 262 × 262 mm, R 57.5 mm |
| Bolt circle diameter | 167 × 167 mm | 221 × 221 mm |
| Baffle cutout | 193 × 193 mm, R 60 mm | 246 × 246 mm, R 60 mm |
| Minimum enclosure | 2.5 L | 6 L |
| Net weight | 2.5 kg | 2.8 kg |
