DSP Technology

Powersoft amplifiers implement advanced Digital Signal Processing (DSP) capabilities onboard, performing sophisticated audio processing tasks internally and enhancing system simplicity and performance reliability.

Control

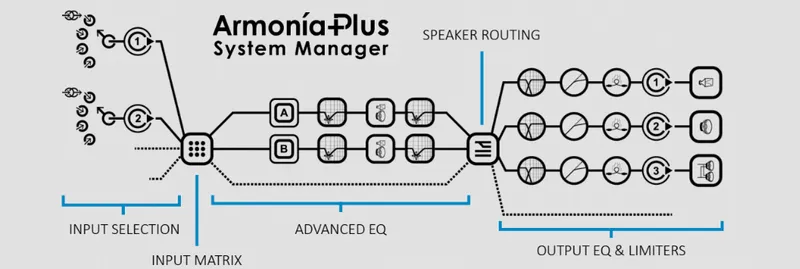

The internal DSP has allowed us to develop a series of features and functionalities for our products, which can all be configured and managed via our proprietary software ArmoníaPlus.

Input Matrix Routing

Implemented non-Boolean routing and mixing capabilities. This tool allows any mixing and gain adjustment combination.

Input Selection

Allows for the selection of source priorities among all available ANALOG and DIGITAL inputs. Implements an automated backup strategy aimed to improve reliability against signal fault: in case of signal loss, missing pilot tone, or even forced remotely, the amplifier automatically switches to the most reliable signal source or preferred source.

Ways, Output EQ & Limiters

Granular control over each channel achieved by the speaker routing tool that allows adjusting separately each way/band by gain and polarity; IRR Filters, crossovers; peak, RMS, and TruePower™ limiters; Active DampingControl™; and LiveImpedance™ monitoring. All amplifiers, apart from MEZZO, also include FIR filters.

Advanced EQ

A multi-stage equalizer designed for sound shaping and fine-tuning. It includes several different filters per channel, including parametric raised-cosine IIR filters, and other tuning adjustments such as polarity and delay.

How does Powersoft’s onboard DSP work?

Digital conversion — high-quality Analog-to-Digital (ADC) and Digital-to-Analog (DAC) converters ensure pristine audio processing.
Advanced processing algorithms — EQ, compression, limiting, filtering and time alignment with unmatched precision.
Real-time closed-loop control — Powersoft products can monitor and control in real time significant speaker parameters such as sound pressure and current.

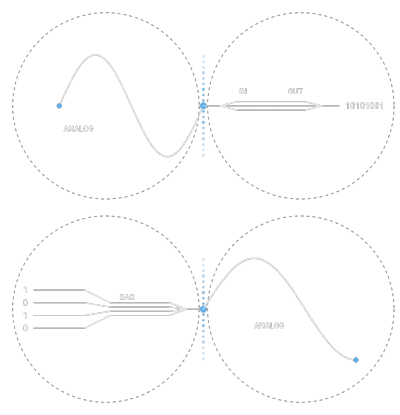

Signal conversion in the onboard DSP: analog to digital at the input, digital to analog through the DAC at the output

Key Facts

High-quality Analog-to-Digital (ADC) and Digital-to-Analog (DAC) converters.
EQ, compression, limiting, filtering and time alignment.
Real-time closed-loop control of speaker parameters such as sound pressure and current.

What are the advantages of onboard DSP?

Integrated solution — eliminates external processors, simplifying setups.
Real-time protection — continuous monitoring protects equipment and optimizes performance.
Consistent audio quality — DSP accuracy ensures superior audio reproduction in diverse conditions.
Enhanced audio quality — real-time control ensures precise management of speaker parameters such as total harmonic distortion (THD), transducer position, power compression and aging.
