M-Force Sub

Together with industry professionals, we have worked on a set of designs to help you harness the power of the M-Force. These are aimed at speaker builders, sound system owners, and install pros that are looking to extend the low-end capabilities of their systems.

The designs are made to fit an M-Force 301P02 moving magnet linear motor transducer matched to an M-Drive amplifier platform.

EDM SUB - REFERENCE DESIGN

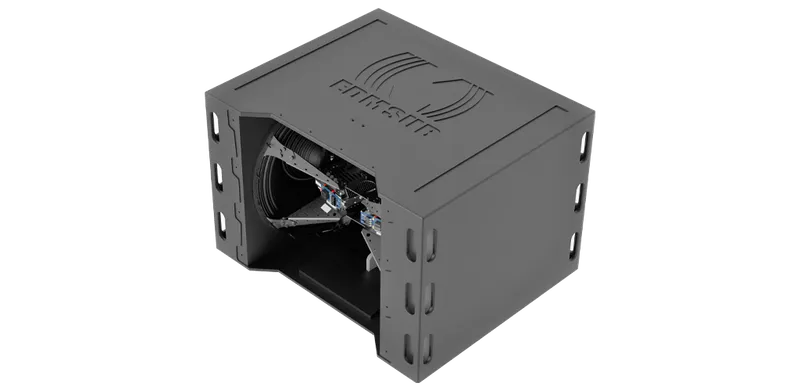

The EDM sub is a bandpass cabinet loaded with two M-Force 301P02 transducers for infra and subwoofer applications. The design has been optimized for producing ultra-high SPL down to 18 Hz, making the EDM SUB the perfect subwoofer and infra add-on to your install or touring sound reinforcement system. The EDM SUB can be driven by the M-Drive or the X4L rack amplifier.

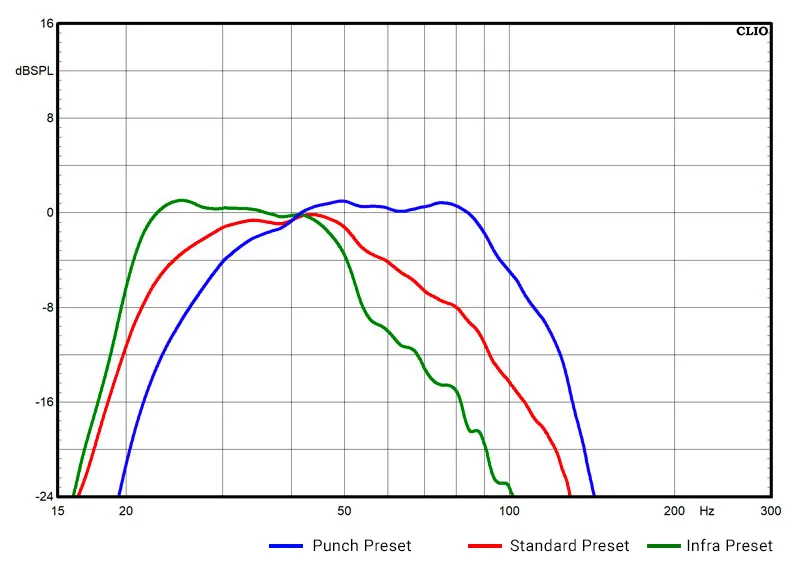

Hover over the image to view the presets diagram

Downloads

DATASHEETPDF CUT LIST & PRESETZIP

DV SUB - REFERENCE DESIGN

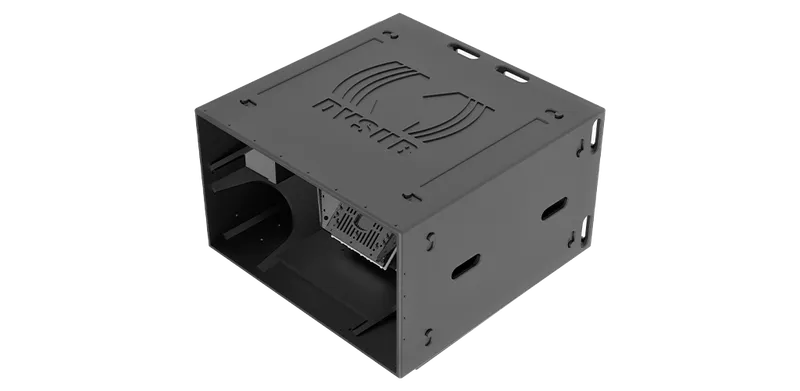

The DV SUB is a bandpass cabinet loaded with the M-Force 301P02 transducer for subwoofer applications. The design has been optimized for producing very high SPL down to 28 Hz in a very compact package, making the DV SUB the best possible upgrade for your existing subwoofer, virtually eliminating non-linear distortions.

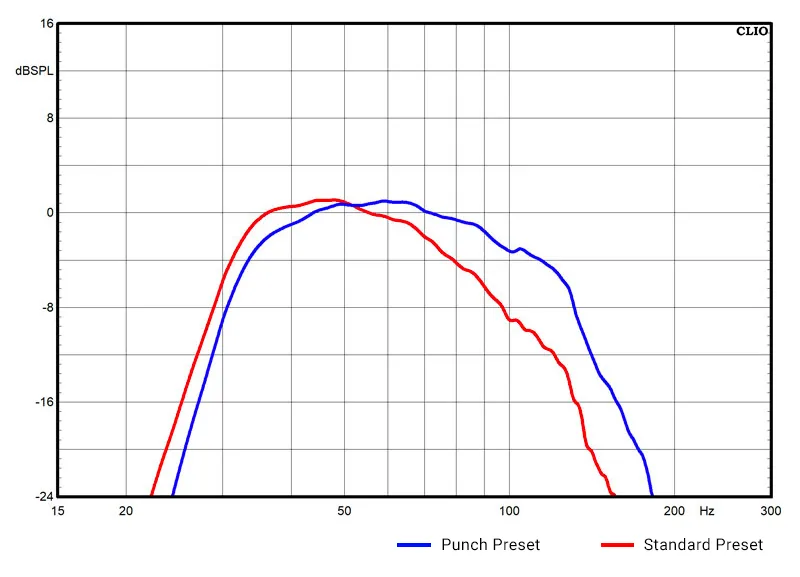

Hover over the image to view the presets diagram

Downloads

DATASHEETPDF CUT LIST & PRESETZIP

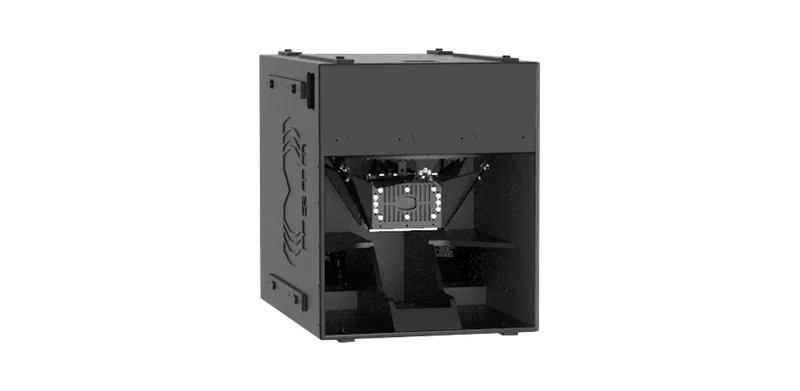

M SUB - REFERENCE DESIGN

The M SUB is a hybrid transmission line cabinet loaded with the M-Force 301P02 transducer for infra and subwoofer applications. The design has been optimized for producing very high SPL down to 22 Hz. The M SUB can be used as a subwoofer or as infra add-on to your install or touring sound reinforcement system.

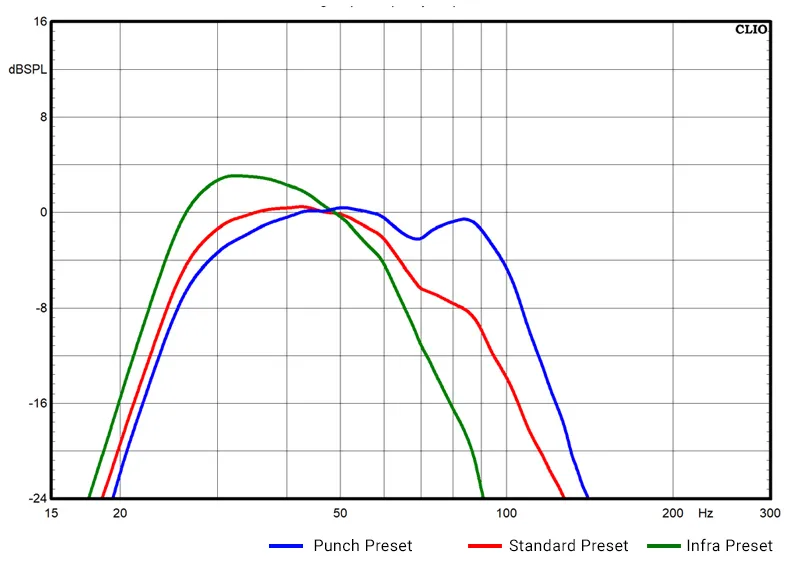

Hover over the image to view the presets diagram

Downloads

DATASHEETPDF CUT LIST & PRESETZIP

CINE SUB - REFERENCE DESIGN

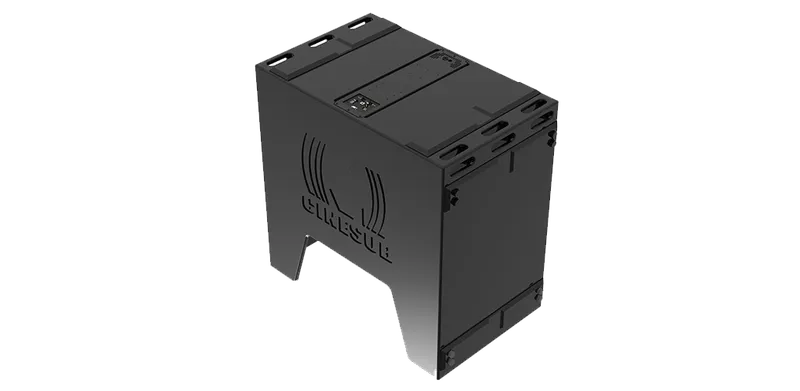

The CINESUB is a hybrid transmission line cabinet loaded with the M-Force 301P02 transducer for infra and subwoofer applications. The design has been optimized for producing low distortion and high SPL down to 16 Hz, making the CINESUB the perfect low-frequency system for cinema applications sound systems as well as for high-end home theater installations.

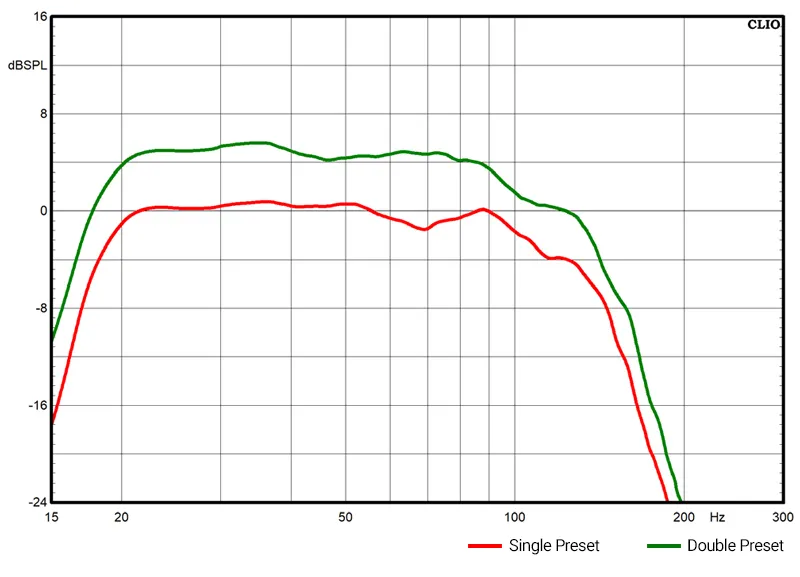

Hover over the image to view the presets diagram

Downloads

DATASHEETPDF CUT LIST & PRESETZIP
