Duecanali Series

The Energy-Efficient Amplifier Platform

Configure

Model

804800 W 16041600 W 48044800 W 6404

Version

DSP DSP+DSP+D

OverviewModelsFeaturesSpecificationsDownloadsRelated case studies

Overview

For Installed Sound Reinforcement systems, the Duecanali Series offers remarkably low power consumption and heat dissipation, in addition to Powersoft’s renowned audio quality and reliable performance - all in a compact, lightweight unit. The Duecanali is a Class D power amplification platform designed for larger 2-channel install applications. While all Duecanali versions deliver Powersoft’s renowned reliability and power density in a light, compact unit, Duecanali DSP+D versions also offer built in, state-of-the-art DSP, as well as Dante, providing additional system flexibility and extensive amplifier control.

2 Channel

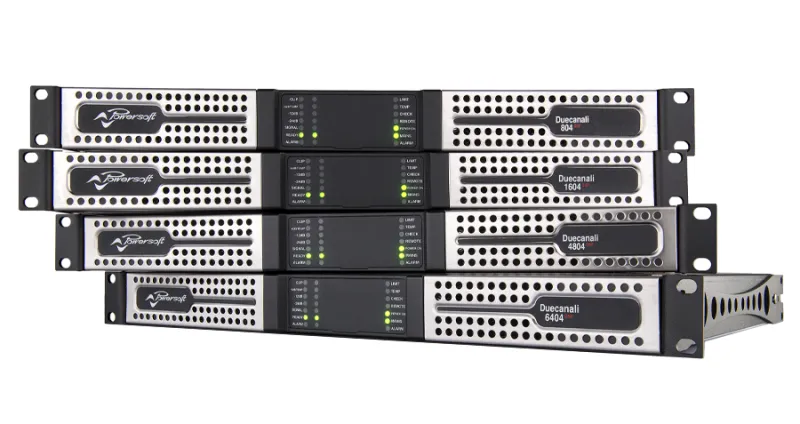

Model	Available Versions	Total Power
Duecanali 804	DSP / DSP+ / DSP+D	800 W
Duecanali 1604	DSP / DSP+ / DSP+D	1600 W
Duecanali 4804	DSP / DSP+ / DSP+D	4800 W
Duecanali 6404	DSP / DSP+ / DSP+D	6400 W

DSP: with integrated DSP DSP+: with DSP and AES67 support DSP+D: with DSP and Dante support For more information and details on Power Sharing capabilities, please refer to the data sheets.

Features

Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
Fixed frequency switch-mode output stage for high grade sound accuracy
Compact size - all models only 1 RU for reduced rack cost and space
Lightweight - for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel
Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
Switchable 35Hz / 70Hz high pass filter per channel
Mixed configuration with Lo-Z/Hi-Z systems possible
Bridged mode low impedance per channel pair
NC/NO contacts per channel for alarm notifications
Remote ON/OFF switch
Remote VCA control per channel
TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters
Control and diagnostics monitoring via ArmoníaPlus
Dedicated WebApp
Attenuation (from 0dB to 26dB)
High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)

Specifications

Output power per Channel
Output power per Channel	500 W @ 2 Ω	400 W @ 4 Ω	400 W @ 8 Ω
Bridge mode	1000 W @ 4 Ω	800 W @ 8 Ω
Max output voltage / current
Max unclipped output voltage@8 Ω	80 Vpeak
Current	39 Apeak
AC main power
Power supply	Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement	100-240 V ±10%, 50-60 Hz
Operating voltage	90 V - 264 V
Power consumption / current draw
Idle	115 V: 23.0 W - 0.34 A	230 V: 22.5 W - 0.21 A
1/8 of max output power @ 4 Ω	115 V: 148 W - 1.4 A	230 V: 147 W - 0.9 A
THERMAL
Operating temperature range	0° - 45° C - 32° - 113° F
Thermal dissipation
Idle	115 V: 78 BTU/h	230 V: 77 BTU/h
1/8 of max output power @ 4 Ω	115 V: 162 BTU/h	230 V: 161 BTU/h
