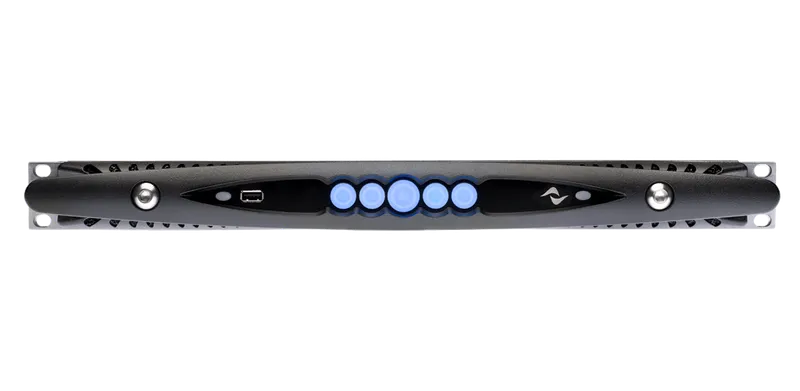

Powersoft X4 innovates and evolves the concept of the amplification platform through the integration of a worldwide compatible three-phase power supply and a fully-featured DSP. The complete digital audio signal management system based on ARM Cortex A-8 processor and TI C6000 DSP platform heralds new and innovative level of signal processing, providing routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2s in input processing and 100ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower™ limiters, and Active DampingControl™. The power supply permits worldwide AC acceptance and direct connection to any regional power line configuration: it is suitable for Single Phase, Bi-Phase, or Three Phase operation from 85 VAC up to 440 VAC without the need for manual selection. True Three Phase load balancing is directly achievable by the unit without any complex load assignment in the power distribution system design. MyPowersoft services are available for this product
Features
- Innovative failure protection aimed at keeping the system on its SOA by detecting the power delivered to speakers compared to the power drawn from mains
- Protection against potentially harmful signals: DC, VHF, and clipping
- Non-boolean channel routing
- Signal grouping for speaker routing
Specifications
| Output power per channel | |||
|---|---|---|---|
| Output power per channel | 5200 W @ 2 Ω | 3000 W @ 4 Ω | 1600 W @ 8 Ω |
| Bridge mode | 10400 W @ 4 Ω | 6000 W @ 8 Ω | |
| Max output voltage / current | |||
| Max unclipped output voltage @8 Ω | 175 Vpeak | ||
| Current | 130 Apeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consumption | |||
| Idle | <100 W | ||
| Max | <3000 W | ||
| Operating temperature range | 0° - 35° C - 32° - 95° F | ||
| Thermal dissipation* | |||
| 1/8 of max output power @ 8 Ω | 115 V: 1127BTU/h | 230 V: 1058BTU/h | |
| 1/4 of max output power @ 8 Ω | 115 V: 2124BTU/h | 230 V: 1639BTU/h | |
