The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor. All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops. The amplifiers feature input via Dante, AES3 and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end, a WiFi access point at the other end and the amplifiers in-between. MyPowersoft services are available for this product
T Series - all models
| Model | Total power | Per channel | Channels | Form factor | AoIP |
|---|---|---|---|---|---|

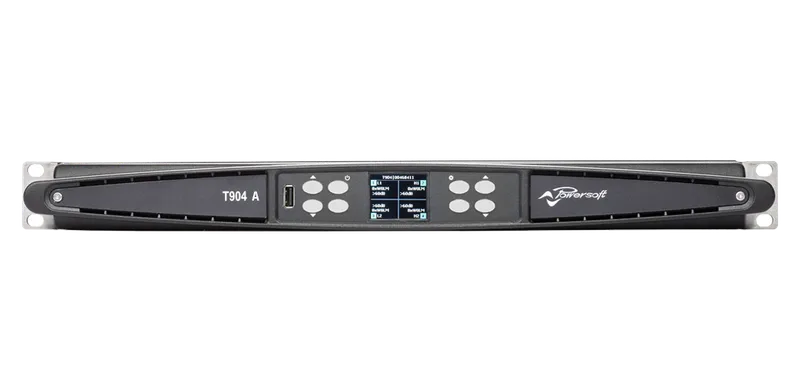

| T904 A | 8000 W | 1800W @ 2 Ω 2000 W @ 4 Ω 1600 W @ 8 Ω | 4 | - | - |

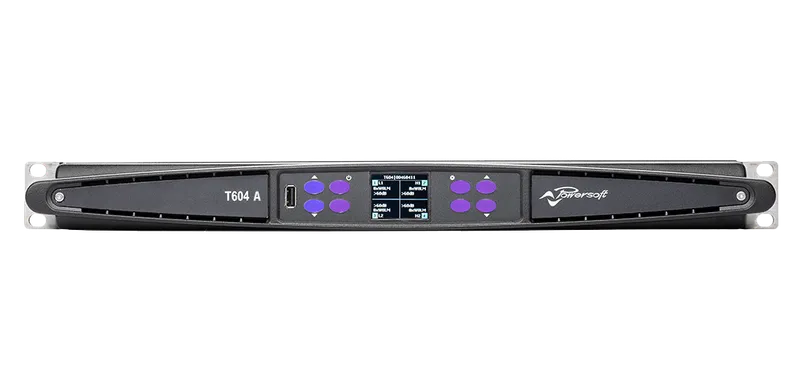

| T604 A | 6000 W | 1500W @ 2 Ω 1500 W @ 4 Ω 1250 W @ 8 Ω | 4 | - | - |

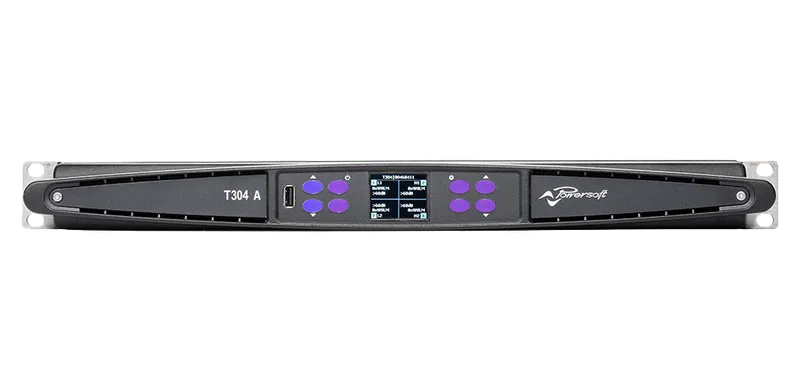

| T304 A | 3000 W | 750W @ 2 Ω 750 W @ 4 Ω 750 W @ 8 Ω | 4 | - | - |
| T902 A | 8000 W | 4000W @ 2 Ω 3200 W @ 4 Ω 1800 W @ 8 Ω | 2 | - | - |
| T602 A | 6000 W | 3000W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω | 2 | - | - |
| T302 A | 3000 W | 1500W @ 2 Ω 1500 W @ 4 Ω 1200 W @ 8 Ω | 2 | - | - |
| T904 | 8000 W | 1800W @ 2 Ω 2000 W @ 4 Ω 1600 W @ 8 Ω | 4 | - | Dante / AES67 |
| T604 | 6000 W | 1500W @ 2 Ω 1500 W @ 4 Ω 1250 W @ 8 Ω | 4 | - | Dante / AES67 |
| T304 | 3000 W | 750W @ 2 Ω 750 W @ 4 Ω 750 W @ 8 Ω | 4 | - | Dante / AES67 |

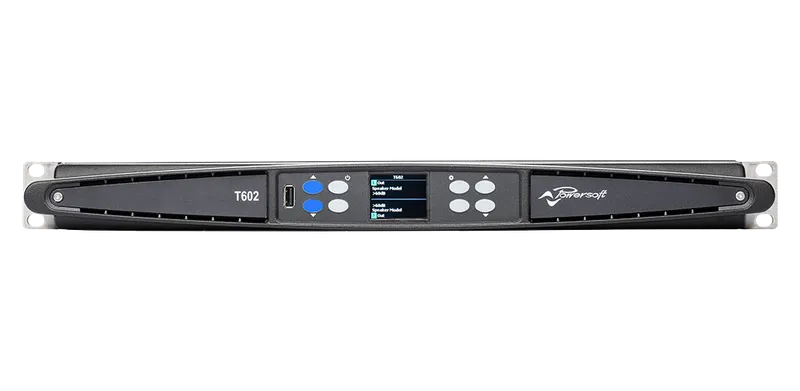

| T602 | 6000 W | 3000W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω | 2 | - | Dante / AES67 |
| T902 | 8000 W | 4000W @ 2 Ω 3200 W @ 4 Ω 1800 W @ 8 Ω | 2 | - | Dante / AES67 |
| T302 | 3000 W | 1500W @ 2 Ω 1500 W @ 4 Ω 1200 W @ 8 Ω | 2 | - | Dante / AES67 |
Features
- Full control with a PC running Armonía.
- Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
- Group controllable advanced EQ with raised cosine filters
- Large preset library
- Preset compatibility with X Series
- Very long FIR filters (42.6 ms)
Specifications
| Output power per channel | |||
|---|---|---|---|
| Output power per channel | 3000W @ 2 Ω | 2500 W @ 4 Ω | 1300 W @ 8 Ω |
| Bridge mode | 6000 W @ 4 Ω | 5000 W @ 8 Ω | |
| Max output voltage / current | |||
| Max unclipped output voltage @8 Ω | 145 Vpeak | ||
| Current | 100 Apeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consumption/ Current draw | |||
| 1/8 of max output power @ 4 Ω | 120 V: 824 W - 7.6 A | 230 V: 839 W -4.3 A | |
| THERMAL | |||
| Operating temperature range | 0° - 35° C - 32° - 95° F | ||
| Thermal dissipation | |||
| 1/8 of max output power @ 4 Ω | 120 V: 678 BTU/h -170.9 kcal/h | 230 V: 731 BTU/h -184.2 kcal/h | |
