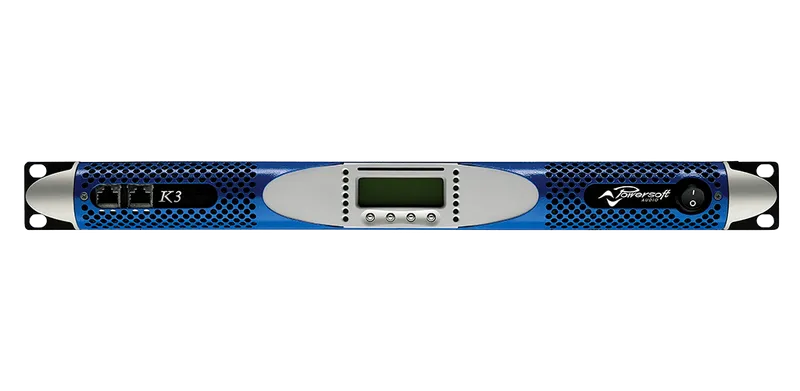

The most versatile model due to an attractive mix of features, size and output power, making the K3 an outstanding value. It is built on the same technologies as every other K Series model, and indeed, the K3 produces the same great sound quality, no matter what type of loudspeaker it is connected to. In use worldwide by leading touring and event sound companies, K Series is preferred among the top ranking system designers, sound engineers, and system techs on the road for making their lives easier, giving them reliable premier-grade power and headroom in the smallest possible package size. Fully digitally controlled and with a serial PC communication port as standard, the K3 is also available with KDSP board and KAESOP Ethernet/AES3 interface: the K3 DSP+AESOP amounts to a fully integrated, highly sophisticated yet easy to use power source including state-of-the-art sound shaping and system management capabilities, remotely controllable via Powersoft’s ArmoníaPlus (Interface available for MediaMatrix, Crestron, AMX, Q-SYS control, and monitoring systems).
K Series - all models
| Model | Total power | Per channel | Channels | Form factor | AoIP |
|---|---|---|---|---|---|

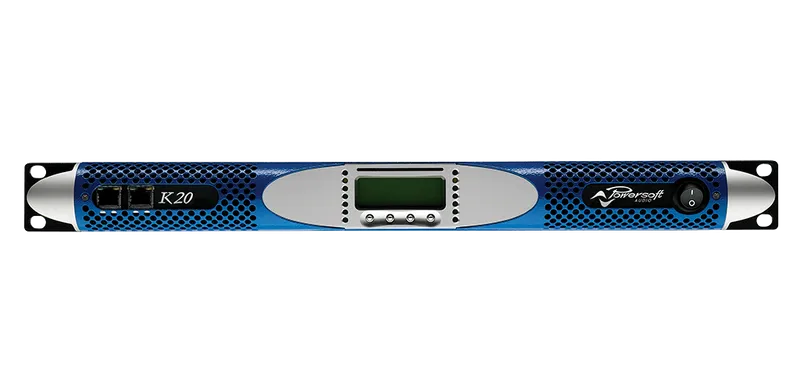

| K20 DSP | - | 9000 W @ 2 Ω 5200 W @ 4 Ω 2700 W @ 8 Ω | 2 | 1 RU | - |
| K20 | - | 9000 W @ 2 Ω 5200 W @ 4 Ω 2700 W @ 8 Ω | 2 | 1 RU | - |

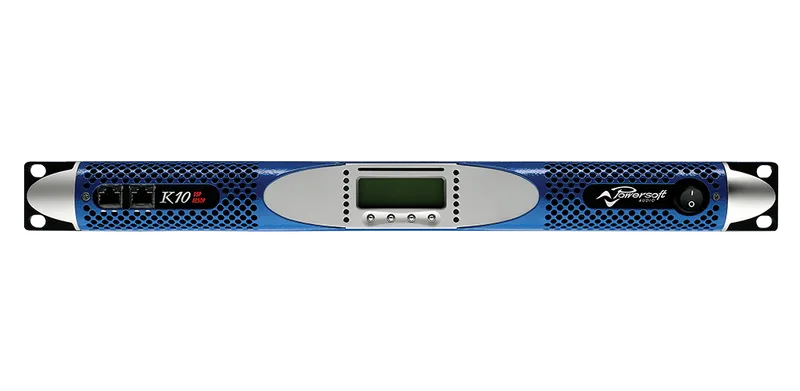

| K10 DSP | - | 6000 W @ 2 Ω 4000 W @ 4 Ω 2000 W @ 8 Ω | 2 | 1 RU | - |
| K10 | - | 6000 W @ 2 Ω 4000 W @ 4 Ω 2000 W @ 8 Ω | 2 | 1 RU | - |
| K6 DSP | - | 3600 W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω | 2 | 1 RU | - |
| K6 | - | 3600 W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω | 2 | 1 RU | - |
| K3 DSP | - | 2800 W @ 2 Ω 2600 W @ 4 Ω 1400 W @ 8 Ω | 2 | 1 RU | - |
| K3 | - | 2800 W @ 2 Ω 2600 W @ 4 Ω 1400 W @ 8 Ω | 2 | 1 RU | - |
| K2 DSP | - | 2400 W @ 2 Ω 1950 W @ 4 Ω 1000 W @ 8 Ω | 2 | 1 RU | - |
| K2 | - | 2400 W @ 2 Ω 1950 W @ 4 Ω 1000 W @ 8 Ω | 2 | 1 RU | - |
Features
- Advanced switch-mode worldwide operating power supply technology for high performance and compact size
- Power Factor Correction PFC for extremely low mains consumption and extremely wide mains operating range
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continous variable speed fan, front to back airflow
- Temperature forecast with LCD traced historical behaviour
- Fixed frequency switchmode output stage for high-grade sound accuracy
- Compact size - all models only 1 RU for reduced rack cost and space
- Lightweight - for easier racking and shipping: 8 - 12 kg (17.6 - 26.5 lbs) according to configuration
- Combo XLR/6.3mm jack Neutrik input connectors with link capability
- AES3 digital input *
- LCD matrix interactive display
- Comprehensive-user friendly front panel display menu
- Built-in defeatable clip limiters for each channel
- Digital gain-attenuator control
- Defeatable gate selection for each channel
- User selectable gain/sensitivity
- User selectable maximum output power for each channel
- User selectable maximum mains current draw
- Lockable set-up by user selectable access key code
- Built-in remote control via the RS-485 interface provides full diagnostic, operational setting, and system monitoring
- Hardware monitor available for fast local diagnostic
- Load impedance measurement/display for each channel
- Output power measurements/display for each channel
- Mains voltage and current measurements/display
- Downloadable log file of functional fault events with time-related trace
- Smart Card settings, parameters, and upgrades functionality
Specifications
| Output power per channel | |||
|---|---|---|---|
| Output power per channel | 2800 W @ 2 Ω | 2600 W @ 4 Ω | 1400 W @ 8 Ω |
| Bridge mode | 5600 W @ 4 Ω | 5200 W @ 8 Ω | |
| Max output voltage / current | |||
| Single channel mode | 165 Vpeak / 102 Apeak | ||
| Bridge mode | 330 Vpeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consumption / current draw | |||
| Idle | 115 V: 64 W - 1.12 A | 230 V: 75 W - 1.3 A | |
| 1/8 of max output power @ 4 Ω | 115 V: 813 W - 8 A A | 230 V: 813 W - 7.4 A | |
| 1/4 of max output power @ 4 Ω | 115 V: 1625 W - 14.8 A | 230 V: 1625 W -7.4 A | |
| THERMAL | |||
| Operating temperature range | 0° - 45° C - 32° - 113° F | ||
| Thermal dissipation* | |||
| Idle | 115 V: 382 BTU/h - 96.3 kcal/h | 230 V: 382 BTU/h - 96.3 kcal/h | |
| 1/8 of max output power @ 4 Ω | 115 V: 836 BTU/h - 210.7 kcal/h | 230 V: 836 BTU/h - 210.7 kcal/h | |
| 1/4 of max output power @ 4 Ω | 115 V: 1390 BTU/h - 350.3 kcal/h | 230 V: 1390 BTU/h - 350.3 kcal/h | |
