12000W/8-channel Flexible Amplifier
Overview
TheOttocanali 12K4is a flexible and reliable 8-channel power amplifier with up to a total of 12,000 W at 4Ω, ideal for multi-zone applications in medium to large-scale installs: Ottocanali 12K4 supports any combination of lo-Z loudspeakers, mono-bridgeable channel pairs and 70V/100V Hi-Z distributed lines with no need for output step-up transformers. The Ottocanali 12K4 features switchable main/aux signal inputs and offers a wide range of system control, alarms, GPI/O and monitoring functions as well as sound shaping options.
The Ottocanali 12K4 implementsswitch mode power supplies with PFC and patented SRM(Smart Rails Management) technology maximizing reliability & efficiency and reducing power consumption.
Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum: the Ottocanali 12K4 shines with outstandingly low power consumption and heat dissipation. This dramatically reduces costs from the AC mains supply and air conditioning/cooling systems – not to mention the benefits to the environment for a greener planet.
MyPowersoft services are available for this product.
Features
Power supply
- Switch mode power supply up to 400VAC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
ProtectionsFully protected circuit design with:
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
General
- Fixed frequency switch-mode output stage for high grade sound accuracy
- All models 2 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 14 kg / 30.8 lbs

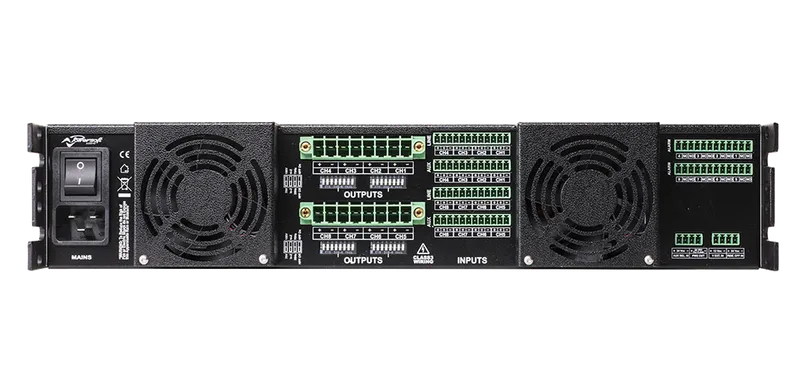

- Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input (main and aux)
Loudspeaker system configuration
- Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
- Switchable 35Hz / 70Hz high pass filter per channel
- Mixed configuration with Lo-Z/Hi-Z systems possible
- Bridged mode, with low impedance, per channel pair
Alarms and GPIO
- NC/NO contacts per channel for alarm notifications
- Remote ON/OFF switch
- Remote AUX / MAIN inputs switch
- PWS OUT connector providing 24VDC
Specifications
Documents
A&E specificationsOttocanali 12K4 A&EBUILDING INFORMATION MODELING - BIMBIM - Ottocanali SeriesData sheetsOttocanali Series DatasheetMechanical drawingsOttocanali 12K4, 8K4, 4K4 Mechanical DrawingsUser guidesOttocanali User GuideSoftwareArmoníaPlusCertificationsCSA Certificate 70003097CCC Certificate 2018010802048447CB Certificate NL-29078 M1RoHsCE Declaration of Conformity PowersoftRoHsChina Declaration of Conformity PowersoftREACH DoC PowersoftDeclaration of Conformity DoC Powersoft – Ottocanali SeriesUK Declaration of Conformity DoC Powersoft – OttocanaliEPA Declaration of Conformity Powersoft
Related case studies
Engineered around uptime
Powersoft has always been very focused on energy saving and the use of the Power Factor Correction (PFC) has been a trademark for improving performance and containing mains current draw and consumption.
In any amplifier output stage, the efficiency is a function of the difference in the output voltage delivered to the load and the rails voltage delivered from the power supply.
Ottocanali Series - all models
| Model | Total power | Per channel | Channels | Form factor | AoIP |
|---|---|---|---|---|---|

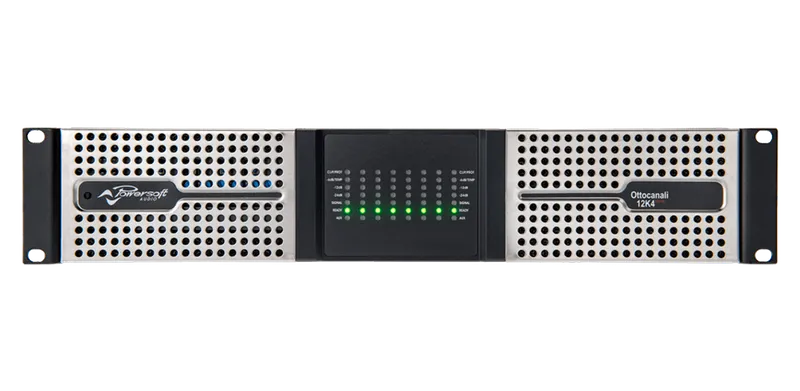

| OTTOCANALI 12K4 DSP+D | 12000 W | 1000 W @ 2 Ω 1500 W @ 4 Ω 850 W @ 8 Ω | 8 | - | Dante / AES67 |

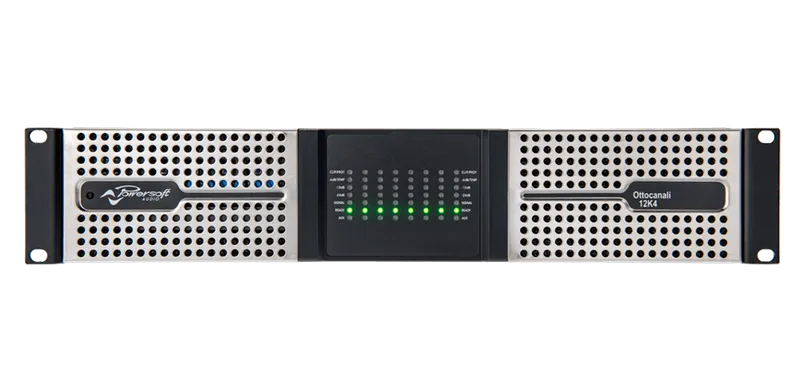

| OTTOCANALI 12K4 | 12000 W | 1000 W @ 2 Ω 1500 W @ 4 Ω 850 W @ 8 Ω | 8 | - | - |

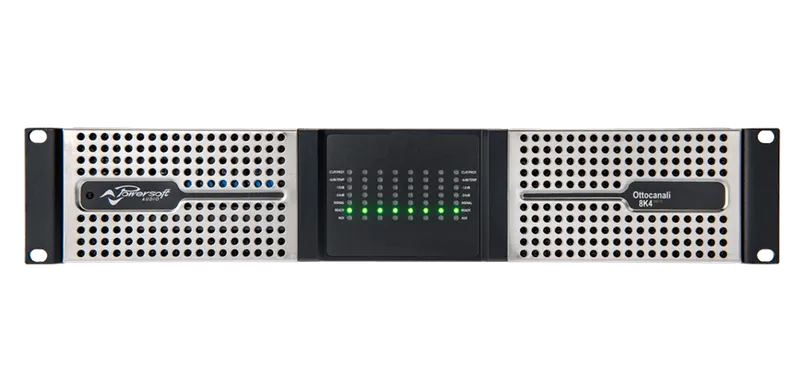

| OTTOCANALI 8K4 DSP+D | 8000 W | 850 W @ 2 Ω 1000 W @ 4 Ω 600 W @ 8 Ω | 8 | - | Dante / AES67 |

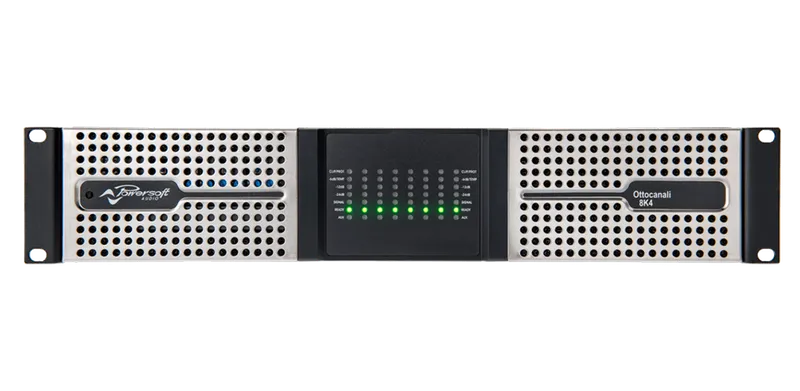

| OTTOCANALI 8K4 | 8000 W | 850 W @ 2 Ω 1000 W @ 4 Ω 600 W @ 8 Ω | 8 | - | - |
| OTTOCANALI 4K4 DSP+D | 4000 W | 450 W @ 2 Ω 500 W @ 4 Ω 250 W @ 8 Ω | 8 | - | Dante / AES67 |
| OTTOCANALI 4K4 | 4000 W | 450 W @ 2 Ω 500 W @ 4 Ω 250 W @ 8 Ω | 8 | - | - |
Features
- Switch mode power supply up to 400V AC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
- Fixed frequency switch-mode output stage for high grade sound accuracy
- All models 2 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 14 kg / 30.8 lbs
- Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input (main and aux)
- Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
- Switchable 35Hz / 70Hz high pass filter per channel
- Mixed configuration with Lo-Z/Hi-Z systems possible
- Bridged mode, with low impedance, per channel pair
- NC/NO contacts per channel for alarm notifications
- Remote ON/OFF switch
- Remote AUX / MAIN inputs switch
- PWS OUT connector providing 24VDC
Specifications
| Output power per Channel | |||
|---|---|---|---|
| Output power per Channel | 1000 W @ 2 Ω | 1500 W @ 4 Ω | 850 W @ 8 Ω |
| Bridge mode | 2000 W @ 4 Ω | 3000 W @ 8 Ω | |
| Max output voltage / current | |||
| Max unclipped voltage @8 Ω | 116.6 Vpeak | ||
| Current | 45 Apeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consumption/current draw | |||
| Idle | 115 V: 47 W - 0.75 A | 230 V: 50 W - 0.7 A | |
| 1/8 of max output power @ 4 Ω | 115 V: 2075 W - 18.5 A | 230 V: 2115 W - 9.7 A | |
| THERMAL | |||
| Operating temperature range | 0° - 35° C - 32° - 95° F | ||
| Thermal dissipation* | |||
| Idle | 115 V: 160 BTU/h - 41 kcal/h | 230 V: 170 BTU/h - 43 kcal/h | |
| 1/8 of max output power @ 4 Ω | 115 V: 2141 BTU/h - 540 kcal/h | 230 V: 1937 BTU/h - 488 kcal/h | |
| 1/4 of max output power @ 4 Ω | 115 V: 4283 BTU/h - 1080 kcal/h | 230 V: 3874 BTU/h - 977 kcal/h | |
