For Installed Sound Reinforcement systems, the Duecanali Series offers remarkably low power consumption and heat dissipation, in addition to Powersoft’s renowned audio quality and reliable performance - all in a compact, lightweight unit. The Duecanali is a Class D power amplification platform designed for larger 2-channel install applications. While all Duecanali versions deliver Powersoft’s renowned reliability and power density in a light, compact unit, Duecanali DSP+D versions also offer built in, state-of-the-art DSP, as well as Dante, providing additional system flexibility and extensive amplifier control.
| Model | Available Versions | Total Power |
|---|---|---|
| Duecanali 804 | DSP / DSP+ / DSP+D | 800 W |
| Duecanali 1604 | DSP / DSP+ / DSP+D | 1600 W |
| Duecanali 4804 | DSP / DSP+ / DSP+D | 4800 W |
| Duecanali 6404 | DSP / DSP+ / DSP+D | 6400 W |
DSP: with integrated DSP DSP+: with DSP and AES67 support DSP+D: with DSP and Dante support For more information and details on Power Sharing capabilities, please refer to the data sheets.
Features
- Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
- Ac protection: shut down power supply when AC mains voltage is outside the operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non-audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
- Temperature forecast with LCD traced historical behavior
- Fixed frequency switchmode output stage for high grade sound accuracy
- Compact size - all models only 1 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 7 kg (15.4 lbs)
- Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input (main and aux) per channel
- Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
- Switchable 35Hz / 70Hz high pass filter per channel
- Mixed configuration with Lo-Z/Hi-Z systems possible
- Bridged mode low impedance per channel pair
- NC/NO contacts per channel for alarm notifications
- Remote ON/OFF switch
- Remote VCA control per channel
- TI C6000 DSP platform
- AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
- Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
- Delay up to 100 ms for time alignment
- Active DampingControl™ for cable compensation
- Peak, RMS voltage, RMS current, TruePower™ limiters
- Control and diagnostics monitoring via ArmoníaPlus
- Dedicated WebApp
- Attenuation (from 0dB to 26dB)
- High-pass filters (35Hz, 70Hz)
- Lo-Z/Hi-Z/70V/100V output selection
- Adjustable gain (from 26dB to 35 dB)
Specifications
| Output power in single channel mode | |||
|---|---|---|---|
| Single channel mode | 2400 W @ 2 Ω | 1950 W @ 4 Ω | 1000 W @ 8 Ω |
| Bridge mode | 4800 W @ 4 Ω | 3900 W @ 8 Ω | |
| Max output voltage / current | |||
| Single channel mode | 140 Vpeak / 102 Apeak | ||
| Bridge mode | 280 Vpeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode witd PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consuption | |||
| Idle | 115 V: 69 W - 1.2 A | 230 V: 88 W - 1.35 A | |
| 1/8 of max output power @ 4 Ω | 115 V: 609 W - 6.3 A | 230 V: 609 W - 3.1 A | |
| 1/4 of max output power @ 4 Ω | 115 V: 1219 W - 11.4 A | 230 V: 1219 W - 5.7 A | |
| THERMAL | |||
| Operating temperature range | 0° - 45° C - 32° - 113° F | ||
| Thermal dissipation* | |||
| Idle | 115 V: 382 BTU/h - 96.3 kcal/h | 230 V: 382 BTU/h - 96.3 kcal/h | |
| 1/8 of max output power @ 4 Ω | 115 V: 722 BTU/h - 181.9 kcal/h | 230 V: 722 BTU/h - 181.9 kcal/h | |
| 1/4 of max output power @ 4 Ω | 115 V: 1062 BTU/h - 267.6 kcal/h | 230 V: 1062 BTU/h - 267.6 kcal/h | |
Documents & files
A&E specifications1
Certifications4
Data sheets1
Mechanical drawings3
Thermal & Current1
2-Channel Power Amplifier for Installed Sound
Overview

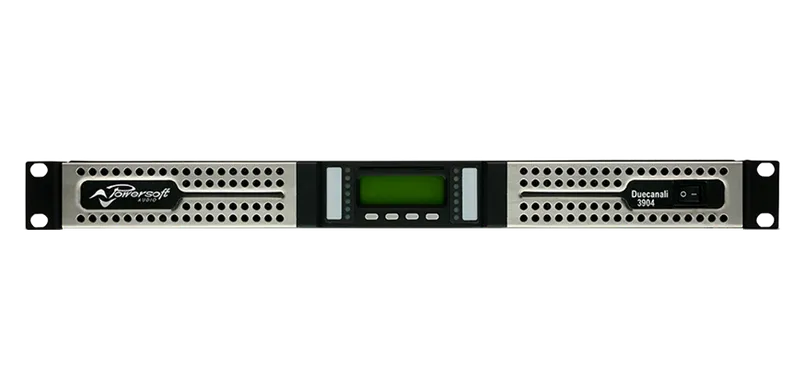

The PowersoftDuecanali 3904is a professional power amplifier designed to meet the most stringent requirements of professional users in professional fixed installations. Designed by Powersoft R&D team the Duecanali 3904 is exclusively built in Italy with internal components selected for premium quality and proven durability. Each modular subassembly is pre-tested, and the assembled Duecanali 3904 receives a rigorous 48 hours burn-in before through final check-out on precision test equipment for total quality control.The Duecanali 3904 incorporates the legendary patented Powersoft universal switching mode power supply up to 400VAC tolerant with Power Factor Correction providing users with worldwide AC acceptance and low consumption. Powersoft bridgeable switch mode fixed frequency class D patented outputs provide high quality sound, excellent damping factor and cooler circuits for stable performances over time and longer amplifier life. LCD display with lockable user menu for easy control of all amplifier settings. Auxiliary inputs, triggered by 24V command input for alarm and pre-recorded emergency messages. Output relay for each amplifier channel for reporting single channel fault conditions. The Duecanali 3904 is able to drive 70V/100V lines without external transformers. Output voltage limiter should be applied, and depending on the speakers being used a high pass filter (HPF) may be required.
Features
Power supply
- Powersoft legendary universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continous variable speed fan, front to back airflow
- Temperature forecast with LCD traced historical behaviour
General
- Fixed frequency switchmode output stage for high grade sound accuracy
- Compact size - all models only 1 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 8 kg (17.6 lbs)
- Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
- Remotely switchable inputs (main and aux) per channel
Settings
- LCD matrix interactive display
- Comprehensive-user friendly front panel display menu
- Built-in defeatable clip limiters for each channel
- Digital gain-attenuator control
- Defeatable gate selection for each channel
- User selectable gain/sensitivity
- User selectable maximum output power for each channel
- User selectable maximum mains current draw
- Lockable set-up by user selectable access key code
- Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
Monitoring
- Hardware monitor available for fast local diagnostic
- Load impedance measurement / display for each channel
- Output power measurements / display for each channel
- Mains voltage and current measurements / display
- Downloadable log file of functional fault events with time related trace
- Smart Card settings, parameters and upgrades functionality
Specifications
- General
- Output power in single channel mode
- Single channel mode - 2400 W @ 2 Ω - 1950 W @ 4 Ω - 1000 W @ 8 Ω
- Bridge mode - 4800 W @ 4 Ω - 3900 W @ 8 Ω
- Max output voltage / current
- Single channel mode - 140 Vpeak / 102 Apeak
- Bridge mode - 280 Vpeak
- AC main power
- Power supply - Universal, regulated switch mode witd PFC (Power Factor Correction)
- Nominal power requirement - 100-240 V ±10%, 50-60 Hz
- Operating voltage - 90 V - 264 V
- Power consuption
- Idle -115 V:69 W - 1.2 A -230 V:88 W - 1.35 A
- 1/8 of max output power @ 4 Ω -115 V:609 W - 6.3 A -230 V:609 W - 3.1 A
- 1/4 of max output power @ 4 Ω -115 V:1219 W - 11.4 A -230 V:1219 W - 5.7 A
- THERMAL
- Operating temperature range - 0° - 45° C - 32° - 113° F
- Thermal dissipation*
- Idle -115 V:382 BTU/h - 96.3 kcal/h -230 V:382 BTU/h - 96.3 kcal/h
- 1/8 of max output power @ 4 Ω -115 V:722 BTU/h - 181.9 kcal/h -230 V:722 BTU/h - 181.9 kcal/h
- 1/4 of max output power @ 4 Ω -115 V:1062 BTU/h - 267.6 kcal/h -230 V:1062 BTU/h - 267.6 kcal/h
Documents
Data sheetsDuecanali Series DatasheetMechanical drawingsDuecanali Legacy Mechanical DrawingsDuecanali Series Mechanical drawingsDuecanali Mechanical DrawingsA&E SpecificationDuecanali 3904 Architecture & Engineering SpecificationsThermal & CurrentDuecanali 3904 Current Draw & Thermal DissipationSoftwareArmoníaPlus 2.3.2CertificationsCSA Certificate 2269943GOST Certificate POCCITAIO77B10470RINA Type ApprovalCCC Certificate 2018010802048310UK Declaration of Conformity DoC Powersoft - Duecanali Legacy Series
