DUECANALI 804

800W/2-channel Flexible Amplifier

OverviewModelsFeaturesSpecificationsDownloadsRelatedRelated case studies

Overview

The ability to implement any configuration with ease makes the Duecanali Series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum. The Duecanali 804 is designed to work with Lo-Z (from 2 Ω) and with 70V/100V distributed lines: any mixed impedance output loads can be realized. MyPowersoft services are available for this product

Models

Duecanali Series - all models

Model	Total power	Per channel	Channels	Form factor	AoIP

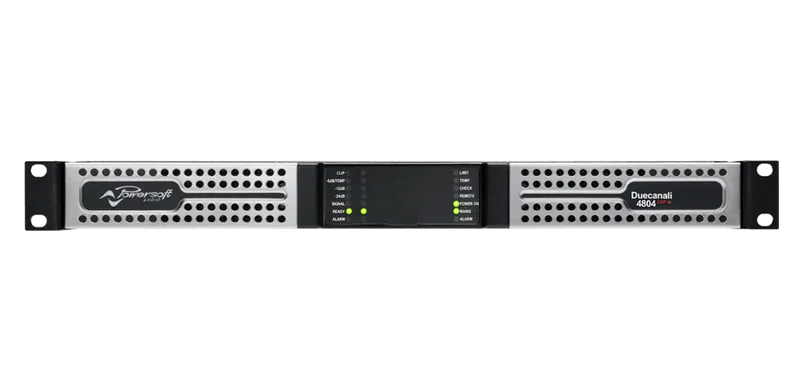

DUECANALI 4804 DSP+	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	Dante / AES67

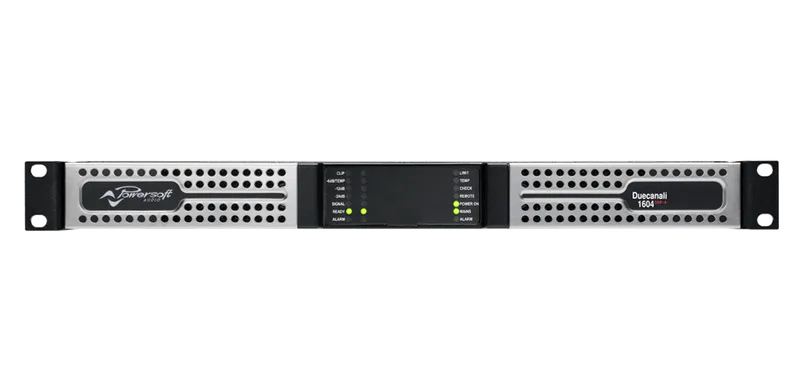

DUECANALI 1604 DSP+	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	Dante / AES67

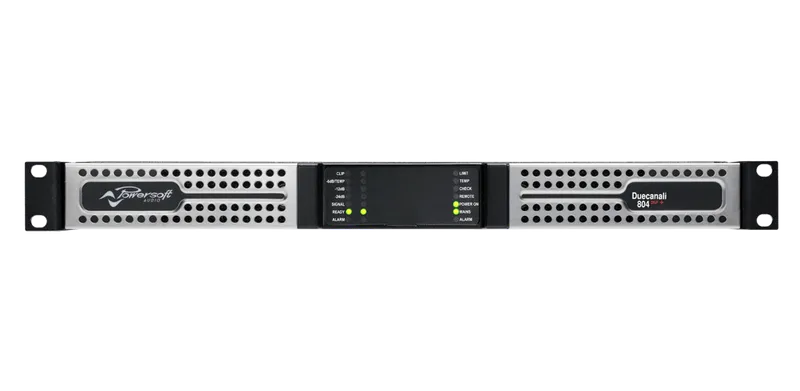

DUECANALI 804 DSP+	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 4804 DSP+D	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 4804 DSP	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	-
DUECANALI 4804	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	-
DUECANALI 1604 DSP+D	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 1604 DSP	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	-
DUECANALI 1604	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	-
DUECANALI 804 DSP	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	-
DUECANALI 804 DSP+D	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 804	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	-

Features

Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Ac protection: shut down power supply when AC mains voltage is outside the operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non-audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior.
Fixed frequency switch-mode output stage for high-grade sound accuracy
Compact size - all models only 1 RU for reduced rack cost and space
Lightweight - for easier racking and shipping: 7 kg (15.4 lbs)

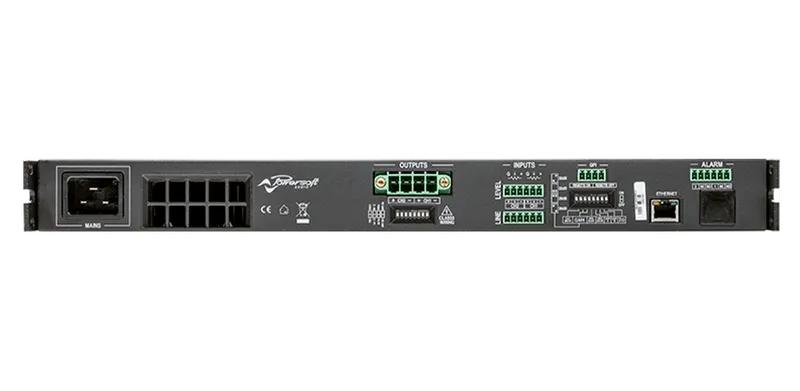

Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel
Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
Switchable 35Hz / 70Hz high pass filter per channel
Mixed configuration with Lo-Z/Hi-Z systems possible
Bridged mode low impedance per channel pair
NC/NO contacts per channel for alarm notifications
Remote ON/OFF switch
Remote VCA control per channel
Attenuation (from 0 dB to 26 dB)
Max output voltage
Output and gain reduction metering
Diagnostics (temperature, fans,...)
Attenuation (from 0 dB to 26 dB)
High Pass Filter (35 Hz, 70 Hz)
LoZ/HiZ/70V/100V output selection
Gain (from 26 dB to 35 dB)

Specifications

Output power per Channel
Output Power per Channel	500 W @ 2 Ω	400 W @ 4 Ω	400 W @ 8 Ω
Bridge mode	1000 W @ 4 Ω	800 W @ 8 Ω
Max output voltage / current
Max unclipped output voltage @8 Ω	80 Vpeak
Current	39 Apeak
AC main power
Power supply	Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement	100-240 V ±10%, 50-60 Hz
Operating voltage	60 V - 264 V
Power consumption/Current Draw
Idle	115 V: 25.6 W - 0.38 A	230 V: 24.7 W - 0.23 A
1/8 of max output power @ 4 Ω	115 V: 150 W - 1.4 A	230 V: 149 W - 0.92 A
THERMAL
Operating temperature range	0° - 45° C - 32° - 113° F
Thermal dissipation*
Idle	115 V: 87 BTU/h	230 V: 84 BTU/h
1/8 of max output power @ 4 Ω	115 V: 171 BTU/h	230 V: 168 BTU/h
