DUECANALI 1604

Name: DUECANALI 1604
Brand: Powersoft

1600W/2-channel Flexible Amplifier

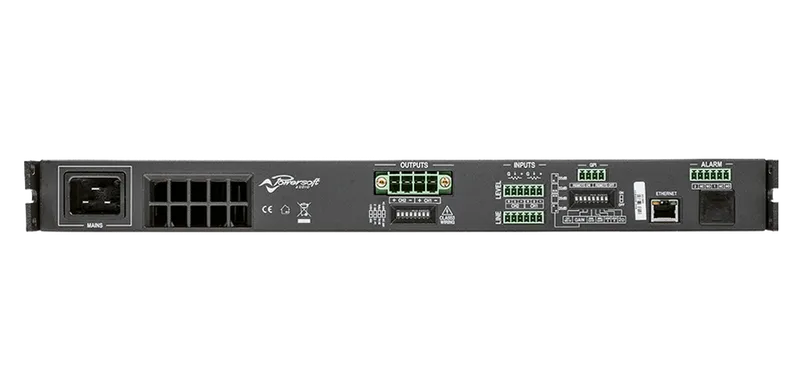

Duecanali amplifier, rear panel: mains inlet, output and input terminal blocks, GPI, Ethernet and alarm

OverviewModelsFeaturesDownloadsRelatedRelated case studies

Overview

The ability to implement any configuration with ease makes the Duecanali Series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.

The Duecanali 1604 is designed to work with Lo-Z (from 2 Ω) and with 70V/100V distributed lines: any mixed impedance output loads can be realized."

MyPowersoft services are available for this product

Models

Duecanali Series - all models

Model	Total power	Per channel	Channels	Form factor	AoIP
DUECANALI 4804 DSP+	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 1604 DSP+	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 804 DSP+	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 4804 DSP+D	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 4804 DSP	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	-
DUECANALI 4804	4800 W	3000 W @ 2 Ω 2400 W @ 4 Ω 1250 W @ 8 Ω	2	-	-
DUECANALI 1604 DSP+D	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 1604 DSP	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	-
DUECANALI 1604	1600 W	1000 W @ 2 Ω 800 W @ 4 Ω 800 W @ 8 Ω	2	-	-
DUECANALI 804 DSP	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	-
DUECANALI 804 DSP+D	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	Dante / AES67
DUECANALI 804	800 W	500 W @ 2 Ω 400 W @ 4 Ω 400 W @ 8 Ω	2	-	-
